INSTRUMENT PIPE FITTINGS
Description
TRUEWAY Valve Manifolds are the perfect solution for high-pressure requirements in the Instrumentation Industry, especially for measurement purposes when used in conjunction with Transmitters and Gauges. These Valve Manifolds come in various configurations, including 2, 3, or 5 Valve Manifolds, to accommodate different application needs.
Our Valve Manifolds are crafted from a range of high-quality materials ensuring durability and reliability in the most demanding conditions. Material options include Stainless Steel, Hastelloy, Inconel, Monel, Brass, PTFE, Carbon Steel etc, allowing you to choose the most suitable option for your specific requirements.
Special Features
100% Factory Tested: Our Valve Manifolds undergo rigorous testing to guarantee top-notch performance, ensuring that they meet the highest quality standards and reliability.
Suitable for High-Pressure Gases, Liquids & Vacuum: Trueway Valve Manifolds are designed to excel in a wide range of applications, making them versatile and dependable.
Type Tested as per MSS-SP-99-2016A: Our Valve Manifolds are certified and compliant with industry standards, to ensure high quality performance and safety.
Range Of INSTRUMENT PIPE FITTINGS

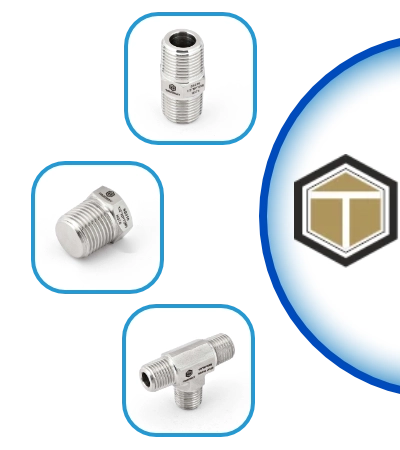

HEX NIPPLE (HN)
| End Connections | MPT x MPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Type | Hexagonal. Reducing nipple of all combinations available. |
| Length | Standard short length (For specific length please inform) |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HN-MPT1*-MPT2* |
HEX PLUG (HP)
| End Connections | MPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Type | Hexagonal. Square head plug upon request |
| Length | |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HP-MPT* |
ELBOW MALE HEX (HEM)
| End Connections | MPT x MPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Type |
Hexagonal. 90 Degree Reducing elbows in all combinations available |
| Length | |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HEM-MPT1*-MPT2* |
TEE MALE HEX (HTM)
| End Connections | MPT x MPT x MPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) |
1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) Reducing tees in all combinations available |
| Female Pipe Thread Size (FPT) | |
| Type | |
| Length | |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HTM-MPT1*-MPT2*-MPT3* |
HEX COUPLING (HC)
| End Connections | FPT x FPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Type | Hexagonal. Reducing hex couplings also available |
| Length | Standard Short Length (For Specific Length Please Inform) |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HC-FPT1*-FPT2* |
HEX CAP (HCP)
| End Connections | FPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Type | Hexagonal |
| Length | |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HCP-FPT* |
ELBOW FEMALE HEX (HEF)
| End Connections | FPT x FPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Type |
Hexagonal. 90 Degree Reducing elbows in all combinations available |
| Length | |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HEF-MPT1*-MPT2* |
TEE FEMALE HEX (HTF)
| End Connections | FPT x FPT x FPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) |
1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) Reducing tees in all combinations available. Tees with Male Female threads upon request |
| Type | |
| Length | |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HTF-FPT1*-FPT2*-FPT3* |

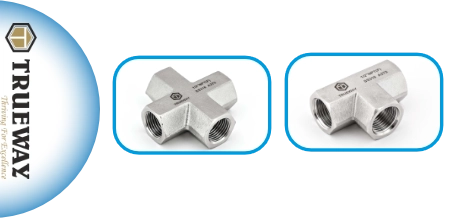

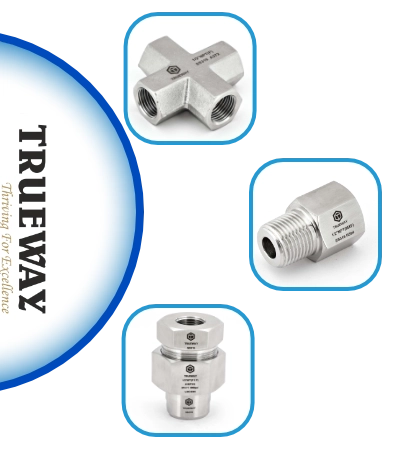

CROSS FEMALE HEX (HCF)
| End Connections | FPT x FPT x FPT x FPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) |
1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) Reducing cross in all combinations available. Cross with Male Female threads upon request |
| Type | |
| Length | |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HCF-FPT1*-FPT2*-FPT3*-FPT4* |
HEX REDUCER (HR)
| End Connections | MPT x FPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Type | Hexagonal. All combinations available |
| Length | Standard short length (For specific length please inform) |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HR-MPT*-FPT* |
HEX ADAPTOR MALE x FEMALE (HA)
| End Connections | MPT x FPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Type | Hexagonal. All combinations available |
| Length | Standard short length (For specific length please inform) |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HA-MPT*-FPT* |
ELBOW MALE FEMALE HEX (HEMF)
| End Connections | MPT x FPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | 1/8” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Type |
Hexagonal. 90 degree Reducing elbows in all combinations available |
| Length | |
| Test Pressure | Up to 10000 psi |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-HEMF-MPT*-FPT* |
PIPE NIPPLE (PN)
| End Connections | MPT/ PLAIN |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | 1/8” to 3” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Type |
Pipe Nipple. Seamless. Threaded Both Ends (TBE), Threaded One End (TOE), Plain Both Ends (PBE) Length to be specified. Pipe Schedule/ Thickness to be specified. |
| Length | |
| Test Pressure | |
| Pressure Class | |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/ Alloy 400, 600, C276/ CS/ AS/ PTFE etc |
| Model No Designator (*) | MOC*-PN-Size*-Length*-Type*-Sch |
PIPE COUPLING SCREWED (PCS)
| End Connections | FPT x FPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Type |
Round as per ANSI B 16.11. Reducing couplings in all combinations available |
| Length | |
| Test Pressure | |
| Pressure Class | Up To 9000 psi |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/Alloy 400, 600, C276/ CS/ AS/ PTFE etc |
| Model No Designator (*) | MOC*-PCS-FPT1*-FPT2*-Class |
PIPE COUPLING SOCKET WELD (PCSW)
| End Connections | SW x SW |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | 1/8” to 2” NB |
| Socket Weld Pipe Size (SW) | |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Type |
Round as per ANSI B 16.11. Reducing couplings in all combinations available Socket Weld to Screwed Coupling available upon request |
| Length | |
| Test Pressure | |
| Pressure Class | Up To 9000 psi |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/Alloy 400, 600, C276/ CS/ AS etc |
| Model No Designator (*) | MOC*-PCSW-SIZE1*-SIZE2*-Class |
PIPE ELBOW SCREWED/SW (PE)
| End Connections | FPT/ SW |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | 1/8” to 3” NB |
| Pipe Thread Size (MPT/FPT) | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Type | Round as per ANSI B 16.11. |
| Length | |
| Test Pressure | |
| Pressure Class | Up To 9000 psi |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/Alloy 400, 600, C276/ CS/ AS etc |
| Model No Designator (*) | MOC*-PE-SIZE1*-SIZE2*-Class |
PIPE TEE SCREWED/SW (PT)
| End Connections | FPT/ SW |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | 1/8” to 3” NB |
| Pipe Thread Size (MPT/FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Type | Round as per ANSI B 16.11. |
| Length | |
| Test Pressure | |
| Pressure Class | Up To 9000 psi |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/Alloy 400, 600, C276/ CS/ AS etc |
| Model No Designator (*) | MOC*-PT-SIZE1*-SIZE2*-Class |
PIPE UNION SCREWED/SW (PU)
| End Connections | FPT/ SW/ MPT |
|---|---|
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| Pipe Size | |
| Pipe Thread End Conn (FPT) | |
| Pipe Thread Conn (FPT/ MPT) | |
| Tube Size | |
| Thickness/ Sch | |
| Tube Grade | |
| Pipe Grade | |
| Drain Plugs | |
| Pipe Socket Weld Size (PSW) | |
| Socket Weld Pipe Size (SW) | 1/8” to 2” NB |
| Pipe Thread Size (MPT/FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Type | Hex. With Viton Soft Seal (SS) or Metal to Metal Seal .(MM) |
| Length | |
| Test Pressure | |
| Pressure Class | Up To 9000 psi |
| Special Flanges | |
| Face Type | |
| Class | |
| Specification | |
| MOC | SS316, 304/Alloy 400, 600, C276/ CS/ AS etc |
| Model No Designator (*) | MOC*-PU-Seal Type*- SIZE1*-SIZE2*-Class |
ADDITIONAL PRODUCT RANGE:
- PRODUCTS COMPLYING NACE SPECIFICATION
- ALL PRODUCTS IN MOC SS316L & SS304L
- SCRD & SW FITTING COMPLETE RANGE (ANSI B 16.11)
- BUTT WELD PIPE FITTINGS (ANSI B 16.9)
- THERMOWELLS
- PRECISION MACHINED PARTS AS PER DRAWING
- O-RING FACE SEAL TYPE WELD FITTINGS & VALVES
- HYDRAULIC HOSE & FITTINGS
Industries
Instrumentation
Chemicals
Oil & Gas
Hydraulics
Power
Steel
Fertilizers
Petrochemicals
Pharmaceuticals
